GARAGE DOORS

UP CLOSE

Install a new overhead garage door to save energy and boost curb appeal.

By Tom Matthews

PUBLISHED JANUARY 8, 2020

Overhead garage doors occupy a lot of square footage, which means they can be among the most noticeable features of a home.

A good-looking garage door can add a great deal of curb appeal, whether you're replacing an old door or adding a full new garage. New insulated doors increase weather protection, save energy, and operate with smoother, quieter performance than doors of the past.

The design of overhead doors has evolved over the years. Homeowners can choose from a wide range of panel and trim designs, a variety of window configurations, and various glass options. Select your favorite color and finish, then personalize your door with optional accessories such as faux door hinges and handles to achieve the look of vertical double doors.

Here’s how a professional installer from Precision Overhead Door Service got the job done.

STEP 1

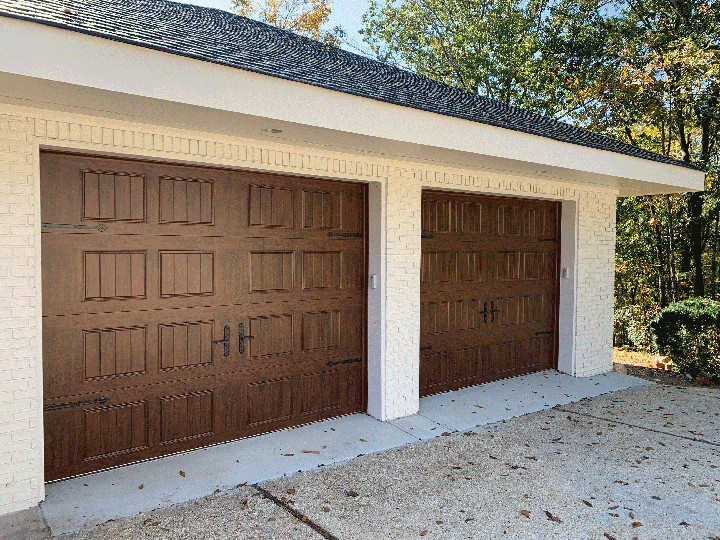

The homeowners, Michael and Paula Laney, selected new Clopay doors for their newly built detached garage. The Clopay Intellicore doors feature proprietary polyurethane foam injected into the door, expanding to fill the entire structure, providing strength, durability, quieter operation and R-values up to 20.4.

STEP 2

First step of a garage door installation is to arrange all the components on a work surface so they're easy to see and ready for assembly.

STEP 3

First step in installation is to attach the weather-stripping around the jamb.

STEP 4

Pro tip: Pre-set your nails into the weather-stripping before positioning it.

STEP 5

Fasten the hinges/rollers onto the individual door panels.

STEP 6

Professional installer Jeremy Molay places the first panel at floor level.

STEP 7

Molay uses the door’s rollers to guide position of the tracks on each side of the doors, screwing the tracks in place on the door frame.

STEP 8

To lift the door, steel cable is routed up through the roller assemblies.

STEP 9

The upper arms of the door tracks are held by metal brackets screwed to the wall. Make sure the brackets align with lower tracks and that everything is installed plumb.

STEP 10

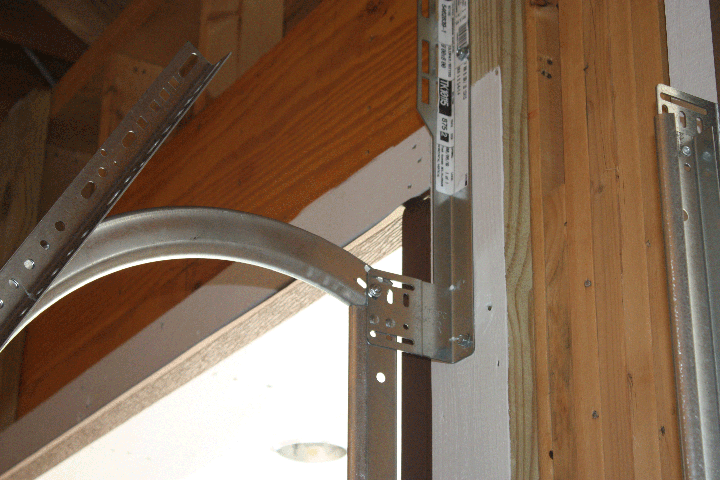

The curved section of the tracks connect with the vertical wall tracks at the bracket to ensure smooth travel of the door up the tracks.

STEP 11

The upper horizontal sections of the tracks will be suspended by slotted angle brackets.

STEP 12

Pro tip: An angle-iron cutter makes short work of cutting the slotted angle brackets.

STEP 13

Angle brackets extending from the wall brackets to the ceiling tracks ensure strength and rigidity.

STEP 14

Additional angle brackets fastened to the ceiling joists support the tracks from above and keep them perfectly aligned.

STEP 15

Both door tracks must be aligned perfectly parallel.

STEP 16

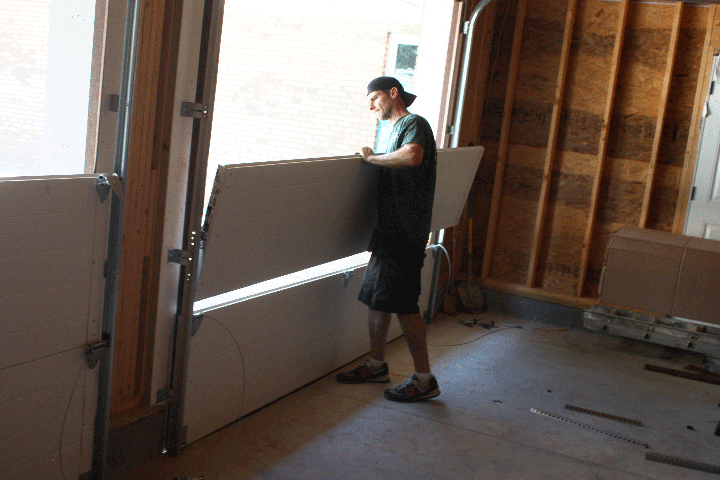

With the tracks in place, the doors can then be assembled panel by panel.

STEP 17

The panels interconnect at each roller/hinge assembly.

STEP 18

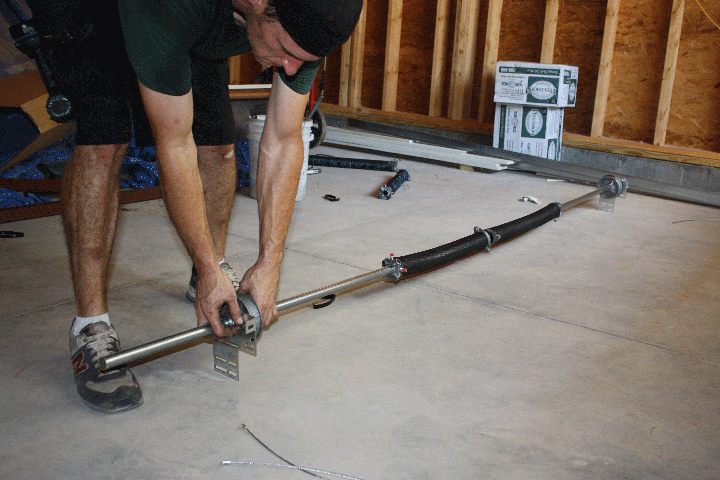

Next, assemble the torsion spring according to the manufacturer's instructions.

STEP 19

Torsion springs are mounted above the doors to operate the door with a controlled, steady motion.

STEP 20

The torsion spring bolts to the corner brackets.

STEP 21

The torsion spring is also supported by a center bracket.

STEP 22

Attaching this reinforcement bar ensures the top panel will stay flat and rigid when lifted.

STEP 23

Winding the torsion spring requires using 18-in. winding bars made from 1/2-in. diameter cold rolled steel (not a typical toolbox staple). Notice the drums on each end that carry the cable up to the spring. Because of the high-degree of tension applied to the spring and the potential for injury, most manufacturers recommend this step be done by a professional.

STEP 24

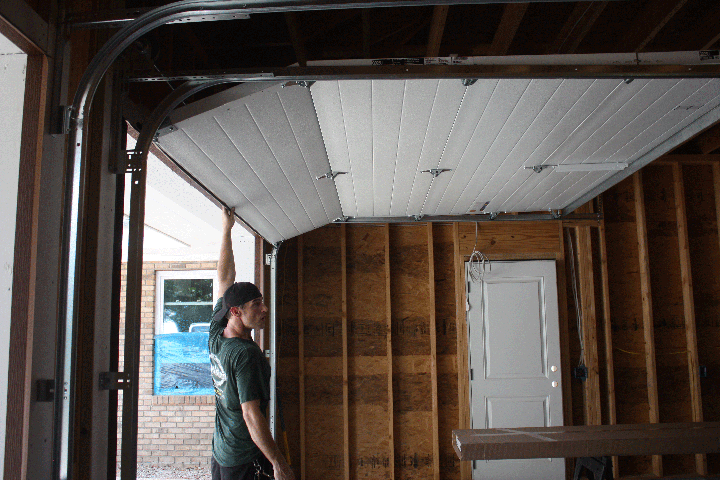

Before moving forward, Molay tests the travel of the door.

STEP 25

Additional angle brackets are fastened to the ceiling joists to support the garage door opener.
